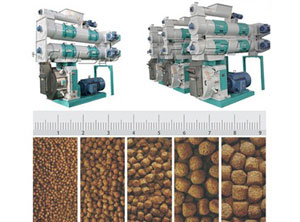

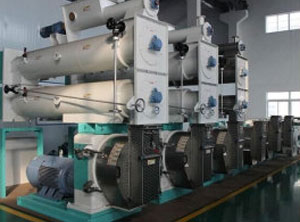

Ring die animal feed pellet mill

  • Ring die animal feed pellet mill
  • Ring die animal feed pellet mill,ring die pellet press machine
  • Ring die animal feed pellet mill

In generally, Ring die animal feed pellet mill is popular type for manufacturing used for commecial and big capacity plant like chicken feed,pig feed,duck feed,fish feed,cattle feed,also for manufacturing wood pellets and biomass pellets, important process for animal feed pellet production line.They have higher quality than flat die pellet machine.

Ring Die Animal Feed Pellet Mill Superiorities
1. Built-in steam collection conditioner
2. High quality finished pellets: The feed pelletizer adopts two or three layers jacketed conditioner, so the material can be fully cooked, meeting special needs and ensure high quality of final aquatic feed pellets.
3. Driven by high precision gear transmission system.
4. High efficiency: Main driving adopts high precision gear transmission, the capacity can be improved about 20% compared to the belt transmission, and with low energy-consumption.
5. Safe and easy operation: Overload protection and electrical control system make the operation safe and easy.
6. Using imported SKF bearings & NAK oil seals
7. Stainless steel pellet chamber.
8. Long service life: Multiple aperture ring die for choice, excellent craft of ring die ensure long service life of the key parts.
9. Feeding device adopts frequency conversion speed
10. High pellets shaping rate: The international advanced spring coupling device is of novel and compact structure, ensures pellets shaping rate higher than 95%
11. Overload protection system
12. Less wear and tear

Ring die pellet press machine features
1.The ring diehas a wide cylindrical shape and is mounted vertically, rather than flat and is mounted vertically
2.Ring Die pellet macine adopts mature technology to make high quality animal feed pellet with large-scale production
3.It mainly consists of feeding device, hardening and tempering device, conditioner device, press chamber transmission system, overload protection and electric control system.
4.Featured with high throughput, nice pellet forming shape, high density and low consumption, ring die feed pellet mill is widely adopted in most large scale feed pellet production line.
5.Ring die pellet mill adopt three layer jacket conditioner, the material can be fully cooked, meet special needs and ensure quality of final aquatic feed.
6.Main driving adopts high precision gear transmission , the capacity can be improved about 20% compared to the belt transmission, and with low energy-consumption.
7.Multiple aperture ring die for choice, excellent craft of ring die with long service life to make smooth and high quality aquatic feed pellets.

Applications of the ring die pellet press machine
★ It can not only produce various kinds of high quality feed pellets for fish, eel, shrimp, crab, loach, bullfrog, etc, and can produce many kinds of pet feeds for cat, dog, rabbit and etc.
★ Common raw material can all be processed into aquatic feed pellets: rice dust, mustard cake, wheat chaff, maize, cotton seeds, fish powder, bone powder, innards and so on.

Working Principle of Ring Die Feed Pellet Mill
The feed ingredients run through feeder into conditioner and are mixed in the conditioner with hot steam, then they go into the pelletizing chamber through blanking taper slot. By scraper the powder material enters into the pelletizing zone. And then the material will be pressed by ring die and rollers into pellets. The pellets are discharged from the die hole and cut into the requested size by the cutter.

Ring die animal feed pellet mill used for medium and large chicken or other animal farm, home pellet press machine can buy the Flat Die Animal Feed Pellet Making Machine.

How to make feed raw materials, feed hammer mill can do it.
